Orbex Gimbal Motor

100300 Gimbal Motor

Orbex Gimbal Motor 100150 Gimbal Motor

26-mm diameter x 12-mm height flat pancake-style gimbal motor for applications with tight installation spaces

  • Compact
  • Smooth, low-cogging motion
  • Multiple windings available
  • Special connector configurations
  • Mounting interface options
  • Easy encoder integration
  • Fast lead times
Availability: 300000 in stock SKU: 100300 Category:
Add to Quote

Specifications

Part Number
Parameter Units 100300
Rated Voltage V 10.00
Rated Torque mN-m 9.30
Nominal Load Speed rpm 3400.00
Rated Current A 0.34
Back EMF Constant  V/Krpm  2.90
Torque Constant  mNm/A  28.30
Weight of Motor g 19
Number of Poles # 14
Operating Environment Temperature: -20 to 85° C;
Insulation Class B

Download The 100300 Gimbal Motor Data Sheet»

Dimensions

100300

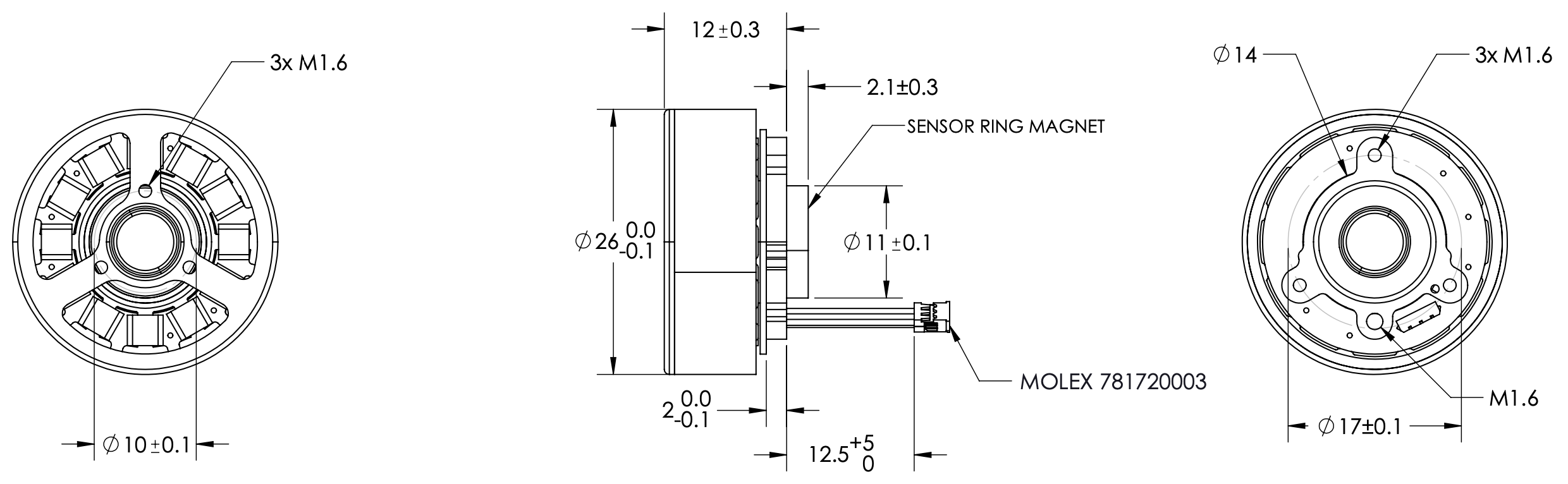

100300 Dimensions

Customization

Orbex offers a variety of customizable features to improve motor efficiency, meet custom voltage requirements and reduce package size.

Custom Options

  • Windings
  • Holding brakes
  • Feedback options
  • Frameless option
  • Gear reducers
  • Connectors
  • Shaft and mounting
