CWD-500 Compact Wheel Drive

Compact Wheel Drive CWD-1000B Compact Wheel Drive with brake

Compact size, smooth motion and excellent power density

  • 160-millimeter wheel diameter
  • Compact 150-millimeter length
  • 30,000-hour life expectancy
  • IP51 protection rating
Availability: 300000 in stock SKU: CWD-500 Category:
Add to Quote

Specifications

Model
Parameter Units CWD500
Continuous Output Torque Nm 20
Acceleration Torque Nm 50
Emergency Torque Nm 75
Nominal Output Velocity rpm 233
Maximum Output Velocity rpm 240
Ratio 15:1
Reducer Efficiency % 90
Noise Level at Nominal Velocity and Load dBA/m <75
Backlash arcmin <30
Life Expectancy hours 30,000
Bus Voltage VDC 48
Power W 500
Wheel Diameter mm 160
Radial Load N 8,000
Axial Load N 2,600
Encoder Resolution Counts 16,384
Halls Y
24 VDC Brake Option
Brake Torque Nm 10
Ambient Operating Temperature °C -10 to 40
Protection Class IP51

Download The CWD500 Data Sheet»

Dimensions

CWD500

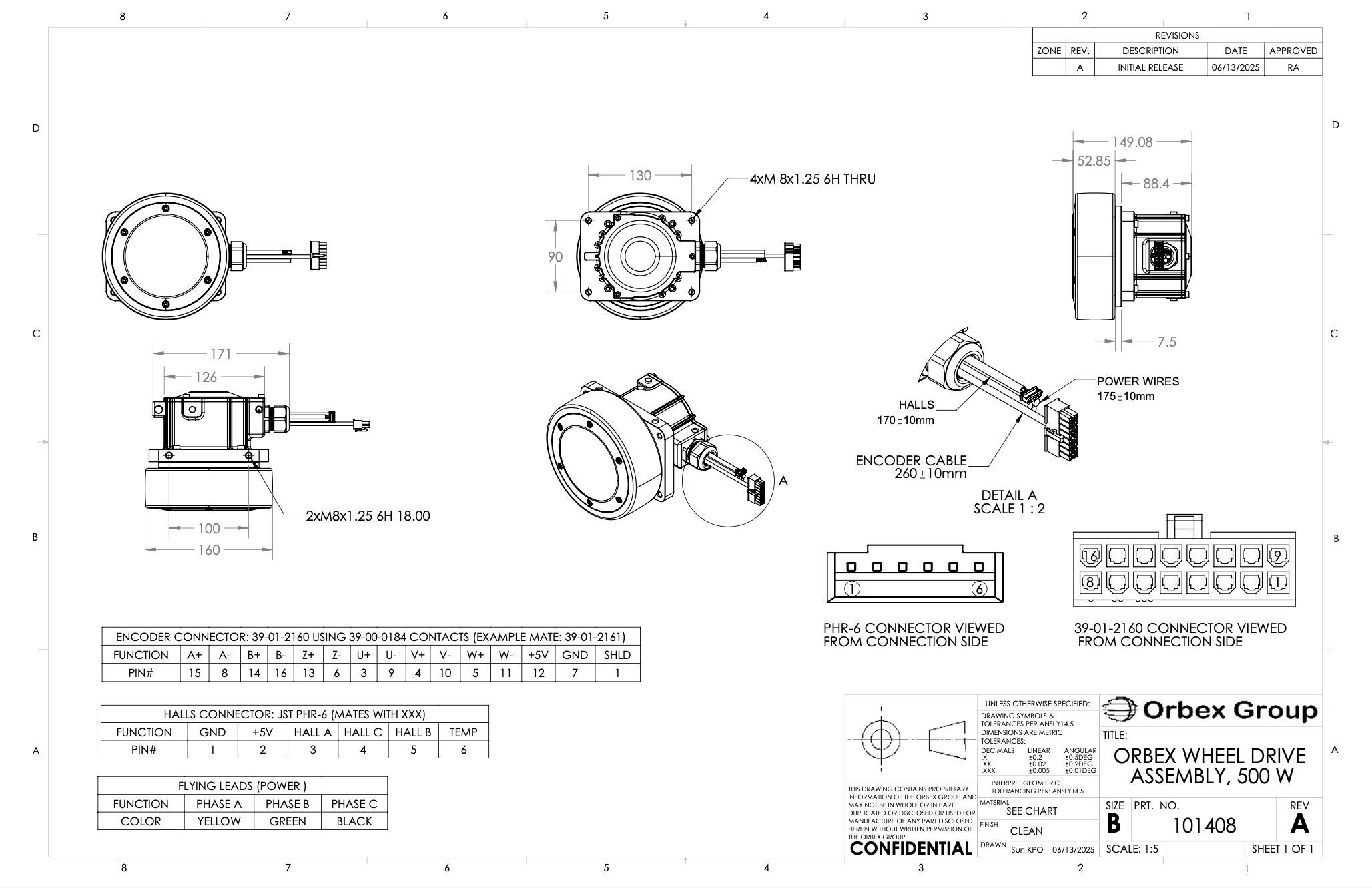

CWD500 Dimensions

Customization

Orbex offers customizable features to improve a wheel drive’s functionality.

Custom Options

  • 24 VDC integrated brake providing 10-Nm braking torque
  • Larger wheel diameter
  • Top Mount Bracket

Applications

Automated guided vehicles

Automated guided vehicles (AGVs)

Autonomous mobile robots

Autonomous mobile robots (AMRs)

CAD

Download Compact Wheel Drive models and drawings

CWD500 with brake
