Compact Wheel Drive

CWD1000 Compact Wheel Drives

Compact Wheel Drive CWD500 with brake Compact Wheel Drives

Compact size, smooth motion and excellent power density with integrated brake options

  • 160-millimeter wheel diameter
  • Compact 150- and 170-millimeter lengths
  • 30,000-hour life expectancy
  • IP54 protection rating
  • Optional 24 VDC 10 Nm brake
  • Brake adds only 28 millimeters of length
SKU: CWD1000 Category:
Add to Quote

Specifications

Model
Parameter Units CWD1000
Continuous Output Torque Nm 50
Acceleration Torque Nm 100
Emergency Torque Nm 150
Nominal Output Velocity rpm 233
Maximum Output Velocity rpm 240
Ratio 15:1
Reducer Efficiency % 90
Noise Level at Nominal Velocity and Load dBA/m <75
Backlash arcmin <30
Life Expectancy hours 30,000
Bus Voltage VDC 48
Power W 1,200
Wheel Diameter mm 160
Radial Load N 8,000
Axial Load N 2,600
Encoder Resolution Counts 16,384
Halls Y
Brake Torque Nm 10
Ambient Operating Temperature °C -10 to 40
Protection Class IP54

Download The CWD1000 Data Sheets»

Dimensions

CWD1000

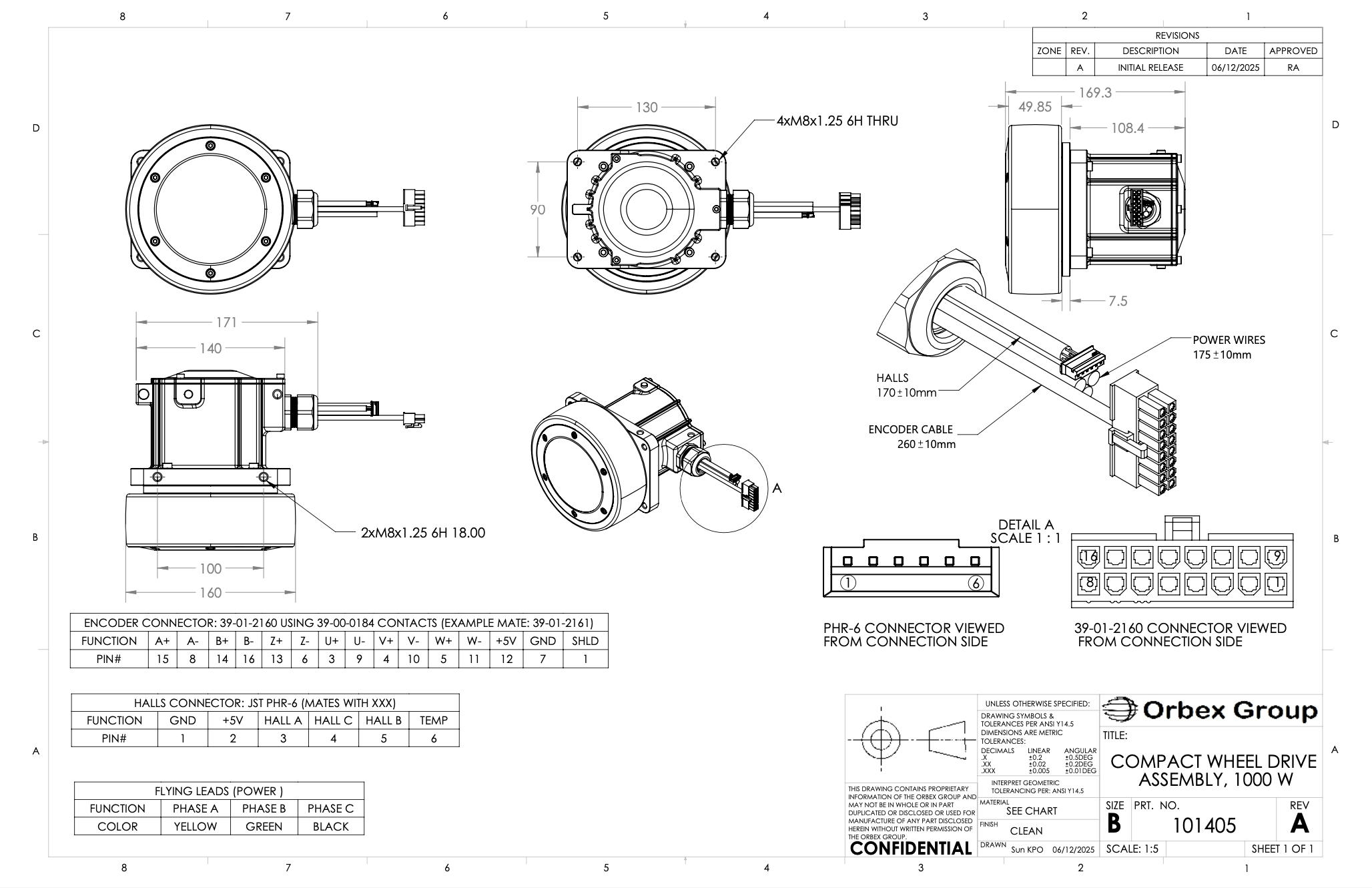

CWD1000 Dimensions

Customization

Orbex offers customizable features to improve a wheel drive’s functionality.

Custom Options

  • 24 VDC integrated brake providing 10-Nm braking torque
  • Larger wheel diameter

Applications

Automated guided vehicles

Automated guided vehicles (AGVs)

Autonomous mobile robots

Autonomous mobile robots (AMRs)

CAD

CWD1000
