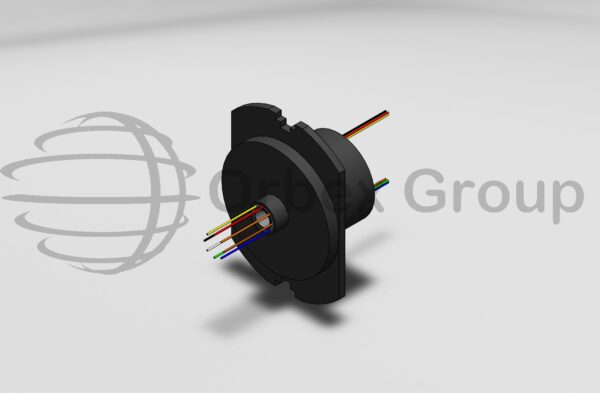

500 Series Through Hole Slip Rings (504-0800)

Slip Ring, 8 circuits rated 2A each, ABS Housing, 4.5mmID , L = 19.4mm

  • Signal Circuits: 8
  • Power Circuits: 0
  • Through Hole Diameter: 4.5
  • Body Diameter: 22
  • Length: 19.4
  • Housing Material: Engineered Plastic

CAD Models and Drawings

SKU: 504-0800 Category:
  • Description
  • Additional information


The 500 series of through bore slip rings is ideally suited for applications where signals and power need to be transferred in a compact space and a through hole is required to pass a shaft or other feed through. The 500 series uses a modular design that allows for unprecedented flexibility with respect to package size, circuit count, and mix of power and signal circuits. Standard units can be supplied with bore diameters from 2 mm to 90 mm, with larger diameters available as custom solutions. The 500 series uses Orbex’s advanced channeled brush technology to greatly increase service life.

  • Multiple sizes from 3 mm ID to 90 mm ID
  • Modular design allowing the mix of signal and power circuits
  • Long Life
  • Maintenance Free Operation
  • Quick Delivery
  • CE and RoHS compliant

Additional information

Signal Circuits

Power Circuits

Through Hole Diameter

Body Diameter


Housing Material
